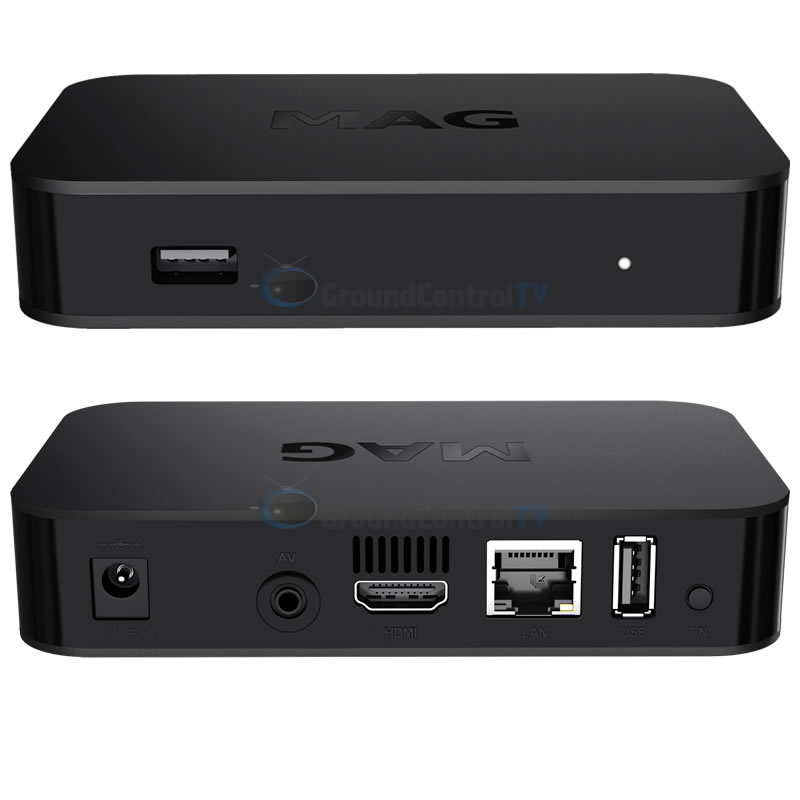

Infomir MAG420 W1

Infomir MAG420 W1

The MAG420 W1 is the next generation of the popular MAG322 and MAG254 boxes.  Supporting 4K resolution and the same great features as the MAG254 and MAG322.  We offer both retail and wholesale for all MAG boxes.

Our price: US$999.00


MAG420 W1 4K - Made by Infomir

MAG420 is the newest 4K box offered by Infomir.  Features a quad core processor for full 4K support, built in wifi, 2 usb ports and much more.

MAG420/420w1 is a powerful and cost-effective solution for quickly launching IPTV/OTT projects. Thanks to the ARM Cortex-A53 processor on the Hi3798MV200 chipset and the built-in HEVC codec, this set-top box easily reproduces 4K content at 60 fps and does not create excessive network loading. The device is equipped with 2 USB inputs, Bluetooth 4.1 and built-in Wi-Fi adapter (for MAG420w1). MAG420/420w1 delivers pure surround sound with the help of built-in Dolby DigitalTM eight-channel audio support.

MAG420 W1 Specifications

Width/depth/height, (mm) 132х87х26
Weight, g 128
Chipset Hi3798MV200
Processor ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance 15 000 DMIPS
RAM 512 MB
Flash memory 512 MB NAND
Operating system Linux 4.4.35
Middleware supported Ministra Multiscreen TV platform
RCA 3.5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Wi-Fi 1T1R n
Sources of media content
PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices
Audio & video
Audio сodecs MPEG L1/L2/L3, Dolby Digital, AAC-LC, HE AAC V1/V2, APE, FLAC
Audio formats AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps, H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats JPEG, PNG, BMP, GIF, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed captions
Playlist formats M3U, M3U8, PLS, CUE
Each MAG420 W1 Comes With:
MAG420w1 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
